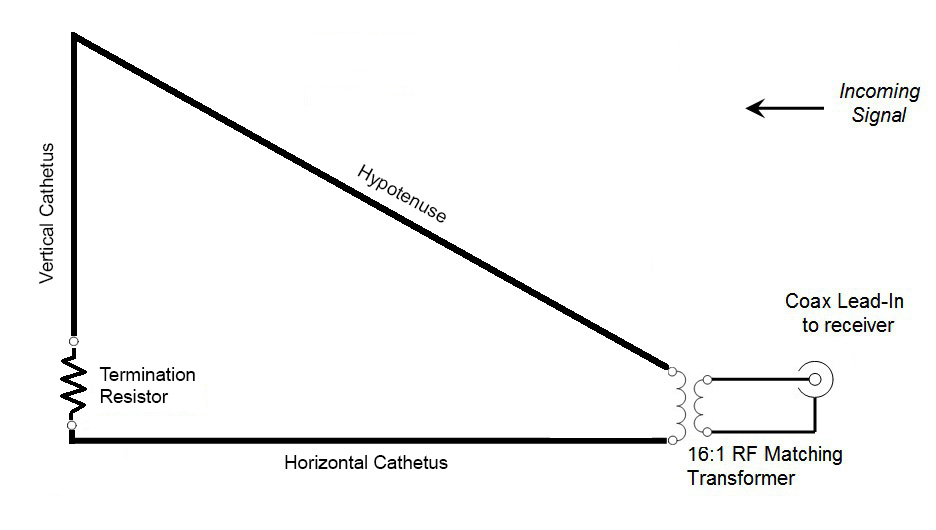

Terminated Right Triangle Loop Antenna
Specifications
Catheti Dimensions 60-ft Horizontal (±5 ft) x 40-ft Vertical (67% of horizontal dimension), 5-ft (±3-ft) typical above groundTermination Resistance 980 Ω (±50 Ω)

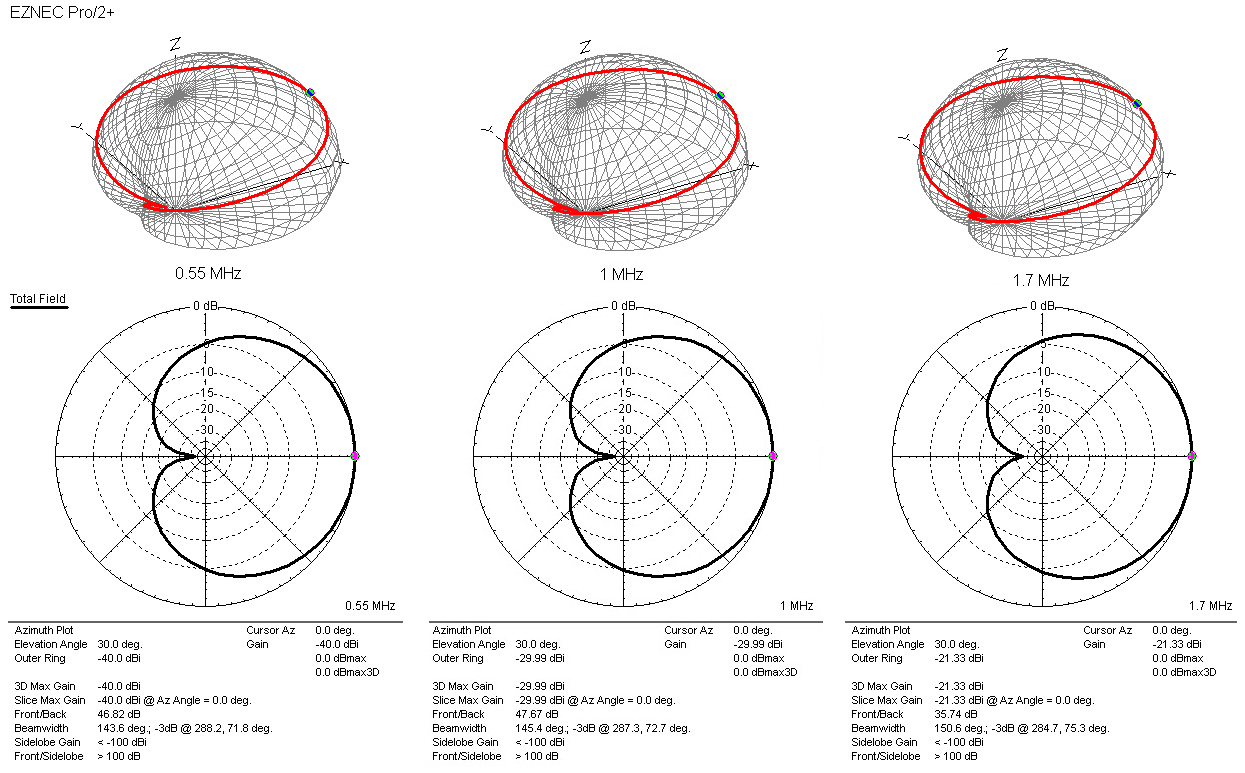

EZNEC Source Impedance 962 + j117
RF Matching Transformer 18:1 or 20:1 to 50 Ω coax lead-in
