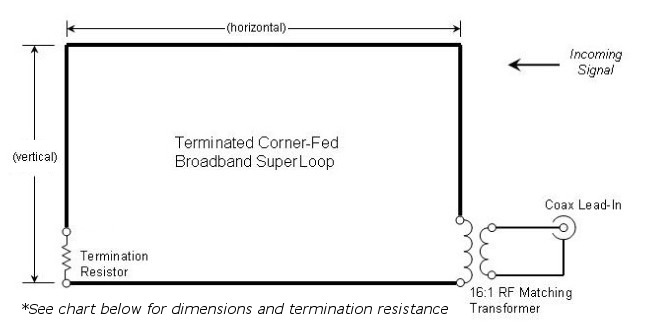

Member of the family of terminated broadband loop antennas, similar to Ewe and Flag antennas. Super-sized dimensions produce exceptional performance for low-angle reception of long distance mediumwave signals.

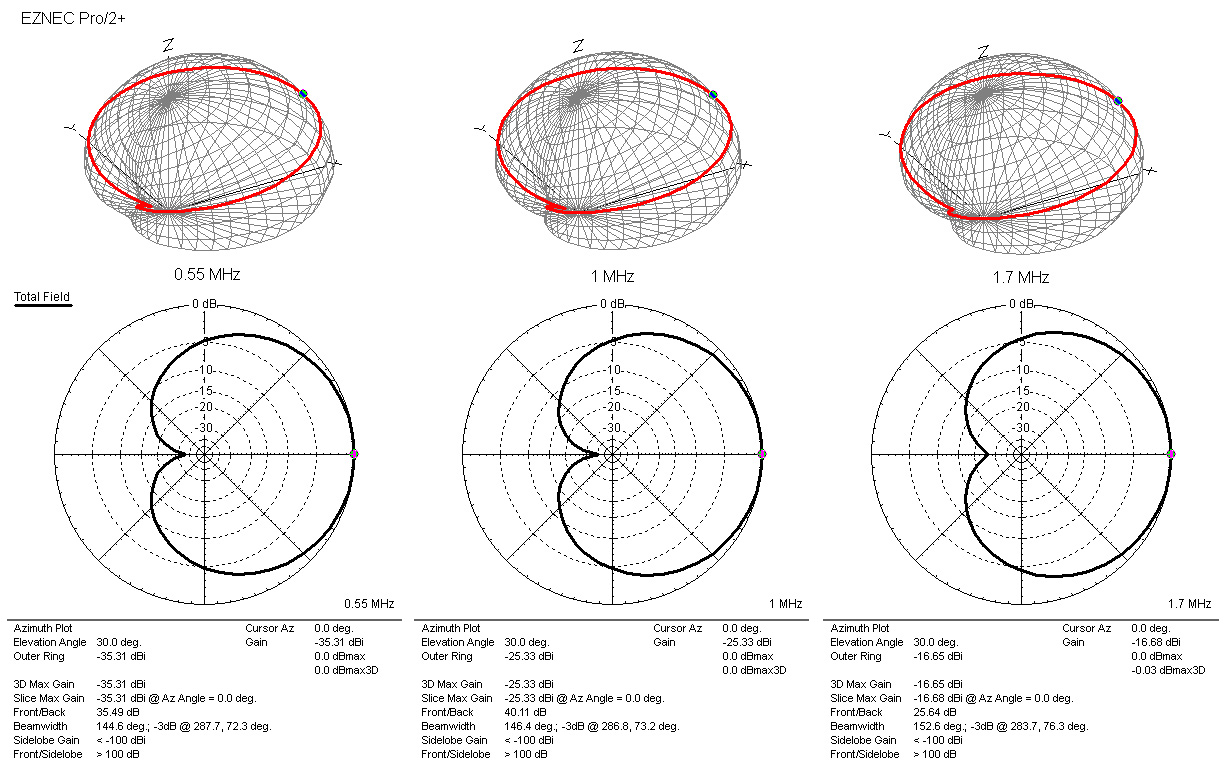

Dimensions 60-ft Horizontal x 40-ft Vertical
Termination Resistance 1200 Ohms
30° Azimuth
